CE-Approved Long Boom for Komatsu PC350 Excavator

Rincian produk

Sertifikasi: CE, ISO9001: 2000, SGS

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            CE-approved Komatsu PC350 excavator boom, excavator long arm for Komatsu PC350, Komatsu PC350 long boom excavator


Nomor Model.:	PC350	Kapasitas ember:	0,5m3
Bahan:	Q345b (Sgc490)	Panjang boom:	11000mm
Panjang lengan:	9000mm	Kedalaman penggalian maks:	14500mm
Cakupan maksimal yang luas:	19600mm	Tinggi Penggalian Maks:	14920mm
Tinggi Lipat:	3210MM	Tonnage excavator:	35ton
Total panjang:	20000mm	Berat:	6000kg
Volume ember:	0,5m3	Jenis drive:	Penggerak pembakaran internal
Penularan:	Transmisi hidrolik

Nomor Model.:	PC350
Kapasitas ember:	0,5m3
Bahan:	Q345b (Sgc490)
Panjang boom:	11000mm
Panjang lengan:	9000mm
Kedalaman penggalian maks:	14500mm
Cakupan maksimal yang luas:	19600mm
Tinggi Penggalian Maks:	14920mm
Tinggi Lipat:	3210MM
Tonnage excavator:	35ton
Total panjang:	20000mm
Berat:	6000kg
Volume ember:	0,5m3
Jenis drive:	Penggerak pembakaran internal
Penularan:	Transmisi hidrolik

Deskripsi

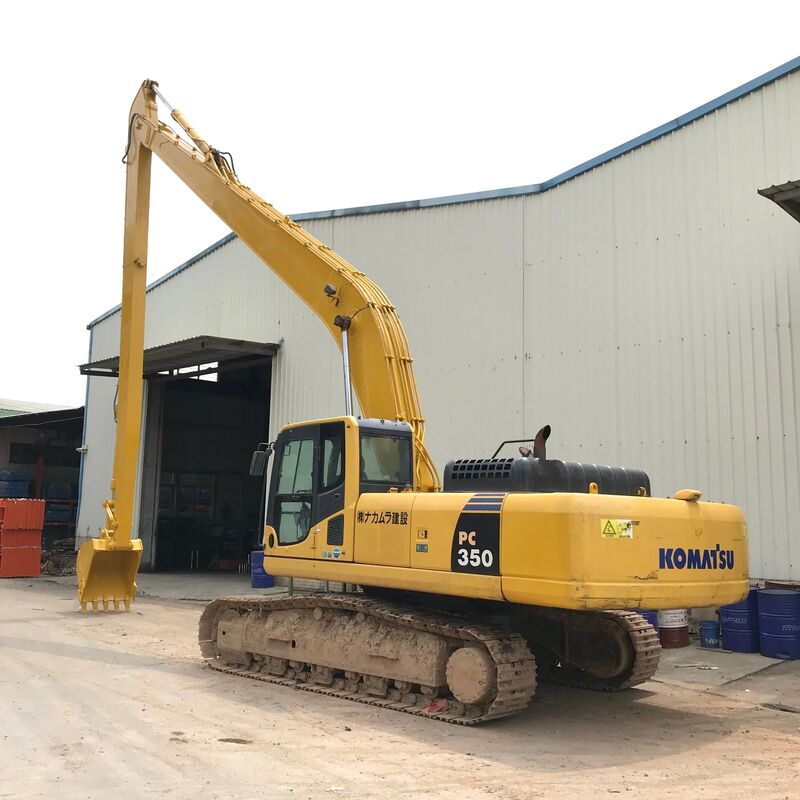

CE-Approved Long Boom for Komatsu PC350 Excavator

Excavator long reach boom and arm system designed for enhanced digging range and performance.

Specifications and Standard Supply

Long boom

One unit

Long arm

One unit

Bucket cylinder

One unit

Standard bucket

One unit

Pins

8 units

"H" linkage

One set

High pressure hoses

4 units

Steel tube

4 units

Boom cylinder

Use original cylinders

Arm cylinder

Use original cylinder

Working Dimensions

Model	LDB120	LDB200	LDB220	LDB200	LDB300	LDB350	LDB400	LDB450
Total length (mm)	13000	15380	15380	18000	18000	20000	22000	24000
Weight (kg)	3000	4000	4200	4900	5200	6000	6500	7000
Max dig depth (mm)	9000	11340	11370	13000	13000	15000	16500	18000
Max extensive scope (mm)	12500	15100	15100	17500	17600	19600	21600	23600
Max dig height (mm)	11300	12510	12610	13720	13720	14920	16100	17300
Folding height (mm)	2900	2980	3040	3210	3210	3210	3400	3400
Bucket volume (m3)	0.3	0.4	0.4	0.4	0.4	0.5	0.6	0.6
Excavator tonnage (ton)	10-16	20-22	22-25	20-25	30	35	40	45

Features

Material

Standard long reach boom uses Q345B steel (equivalent to S355 steel in Europe)
Heavy duty long reach (excavator tonnage above 40ton) uses Q690D steel for top and bottom sections (equivalent to S690QL steel in Europe) with Q340B steel for other components

Internal Structure

Reinforced with vertical and horizontal plates at regular intervals for maximum strength and durability.

Precision Manufacturing

All steel plates are beveled by beveling machine before welding to ensure perfect fit and maximum weld strength.

Welding Process

Welded with mixed gas (80% argon, 20% carbon dioxide) for optimal weld quality
Precision robotic welding ensures consistent, high-quality welds throughout the structure
